8" x 8" Smooth, Non-Tapered PVC Column


Score: 5.00 (votes: 3)
  • US$156.00

Column Wrap Probably the best value you'll find on the net! -- PVC column wraps are quick and easy to install as well as lightweight, strong and paintable. They hold up to warping, shrinkage, decay, insects and they don't need to be painted. Our PVC wraps are made with premium "Free Rise" cellular PVC. The shaft is shipped in four easy to cut-to-size panels. All you need is a chop saw and basic carpentry tools to install. We make these in large production runs and we ship them out fast.

Quantity:
  • Installation Tips & FAQs

    Find helpful tips, specifications and installation advice on how to install our columns. Read through the instructions to see if this is the right product for you.

  • Weight
    40 lbs
  • SKU
    PVC-8-PNT-6ft

8" x 8" PVC Square NON-TAPERED
Column Wrap Probably the best value you'll find on the net! -- PVC column wraps are quick and easy to install as well as lightweight, strong and paintable. They hold up to warping, shrinkage, decay, insects and they don't need to be painted. Our PVC wraps are made with premium "Free Rise" cellular PVC. The shaft is shipped in four easy to cut-to-size panels. All you need is a chop saw and basic carpentry tools to install. We make these in large production runs and we ship them out fast.

Specifications

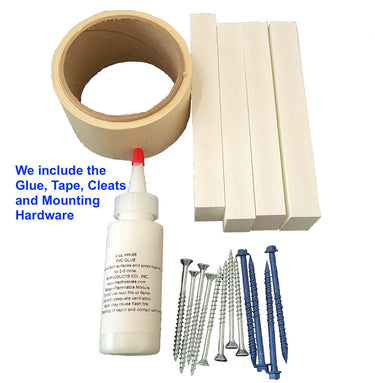

Comes complete with 3 oz of PVC adhesive, tape, installation cleats, mounting hardware and instructions.

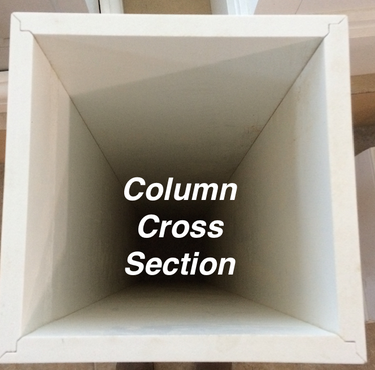

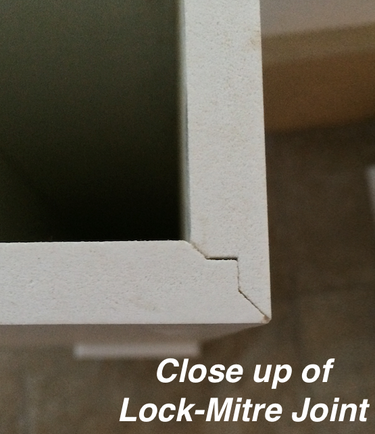

The column shaft is made from four ½” thick PVC panels with a lock miter joint for easy glue assembly. The actual outside dimension of the shaft is 7 ¼” and the inside dimension is 6 ¼” square.
The ¾" thick PVC box / base adds 1 ½" inches of thickness of the shaft making the overall footprint 8 ¾”.

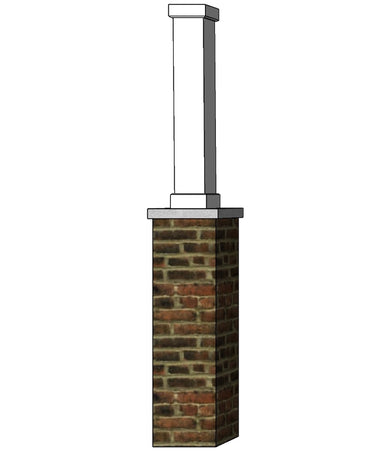

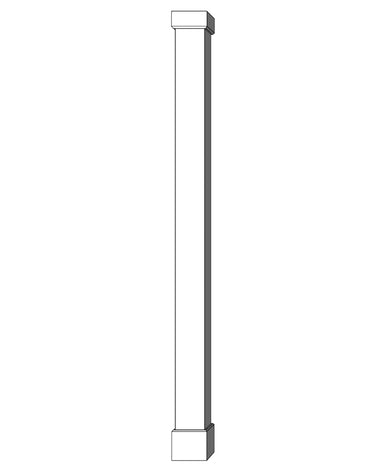

This package includes box cap that is 3 3/4” high; for columns 4 to 6 feet high the base is also 3 ¾” high; and for columns 8 feet or higher, the base is 6 ½” tall.

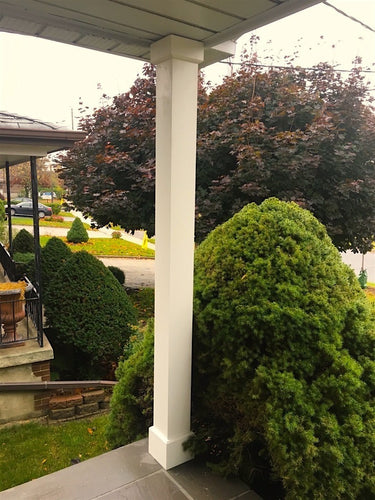

>PVC Column Photo Gallery               >Capital & Base Drawings

Options

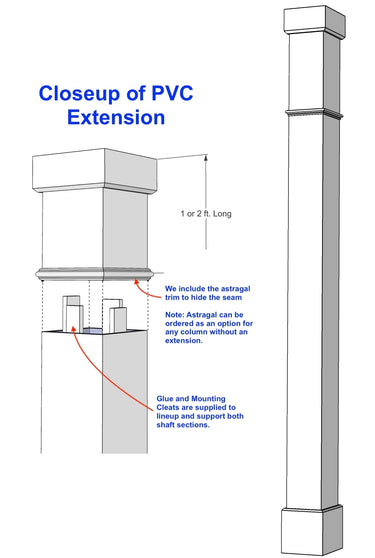

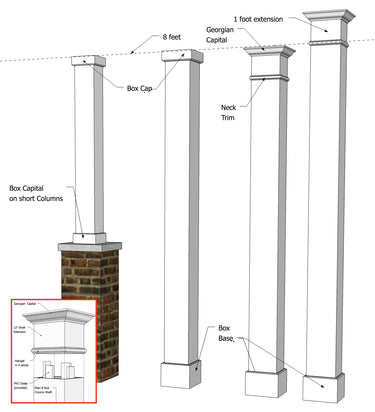

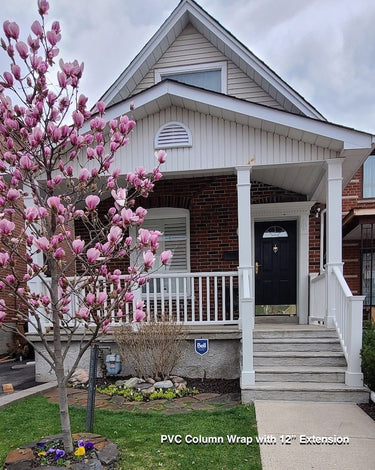

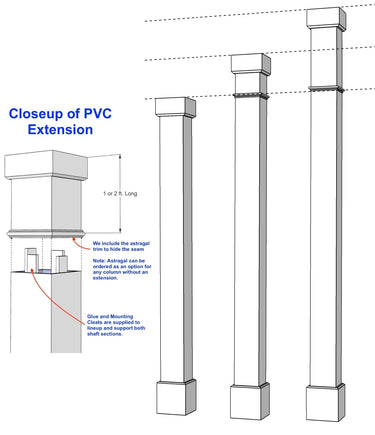

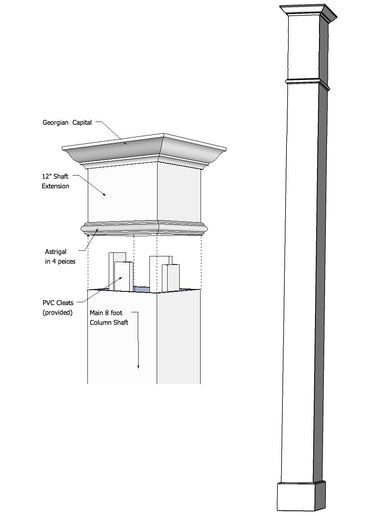

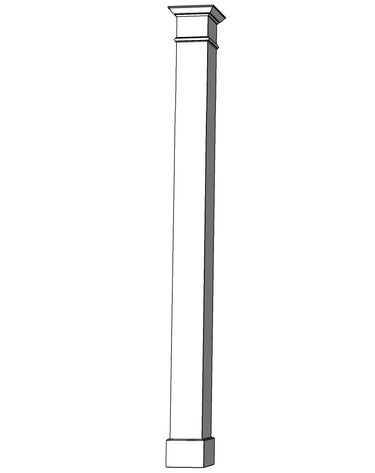

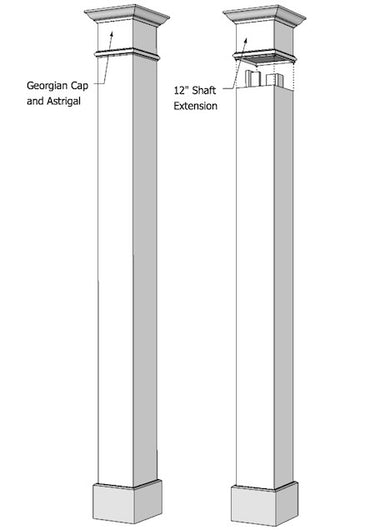

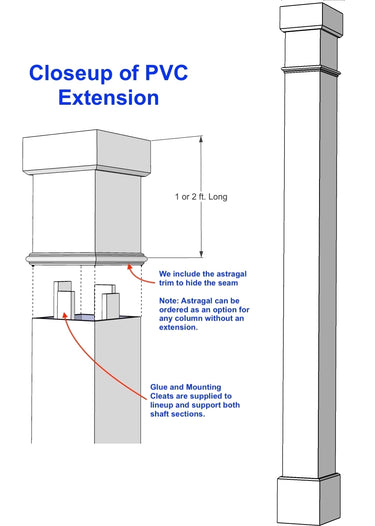

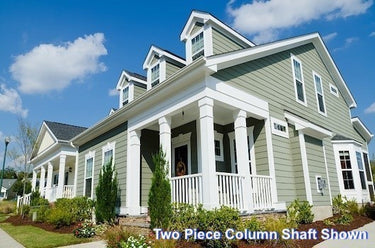

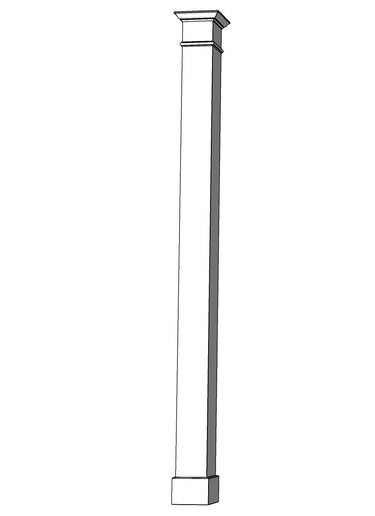

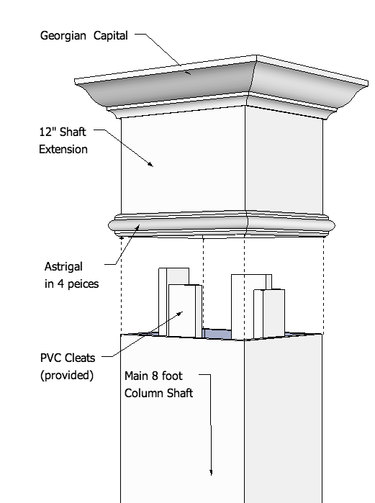

Our 9 foot columns are made specifically for easy UPS shipping! The column shaft is shipped in two sections ( 8 + 1 = 9 ) that fit together seamlessly on site.  The astragal or neck trim hides the seam.  The nine foot columns are only available with the Georgian Capital and we include the mounting cleats as shown on the drawing.

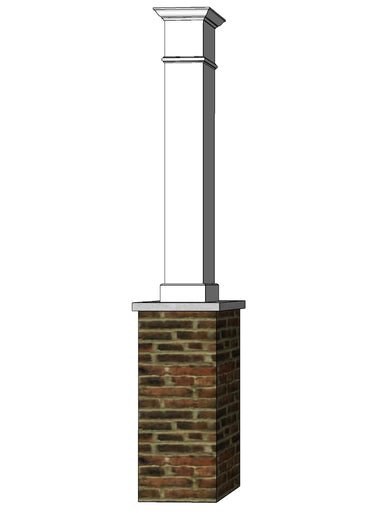

Georgian and astrigal trim upgrade.
A Tuscan cap and base set

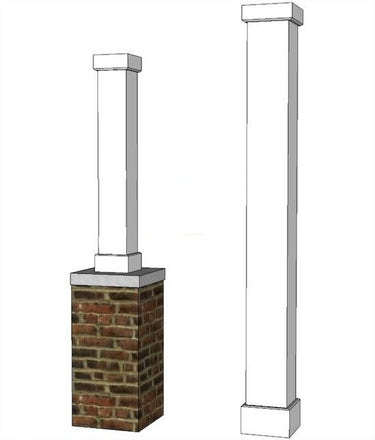

Columns can also be ordered as a newel post to support railing or made as a pilaster to go up against a wall.

  • Production Time
    Quick Ship
  • Tarrif Code
    3925.90.0000
  • Shipping Cost
    For columns 9 ft or less: $25 per column to a maximum of $100. Call for a competitive transport shipping quote for columns over 9 ft. long.
    Limitations for USD Shipping Specials
    Limitations for CAD Shipping Specials
  • Capital and Base Chosen

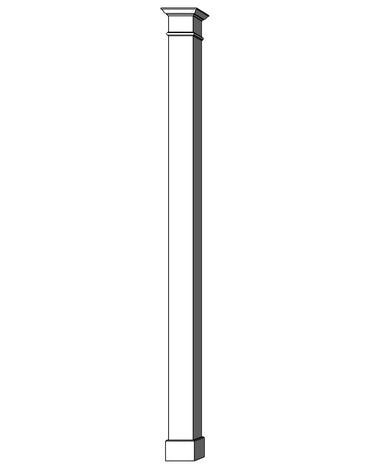

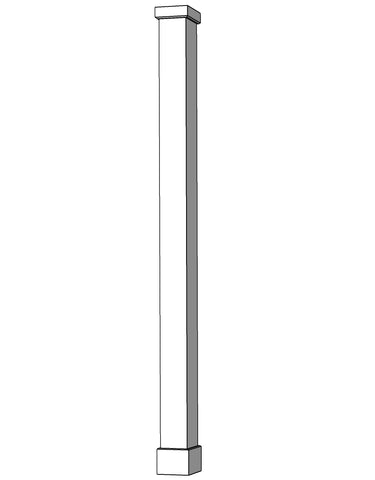

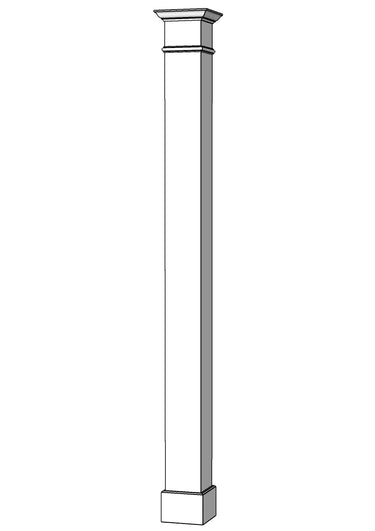

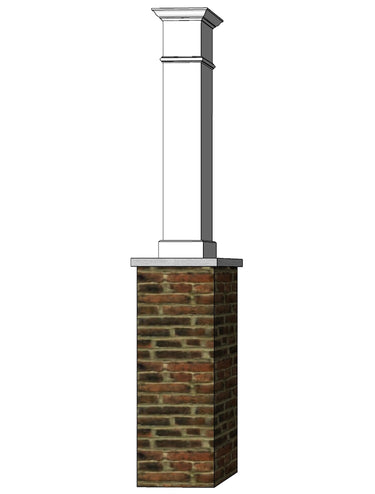

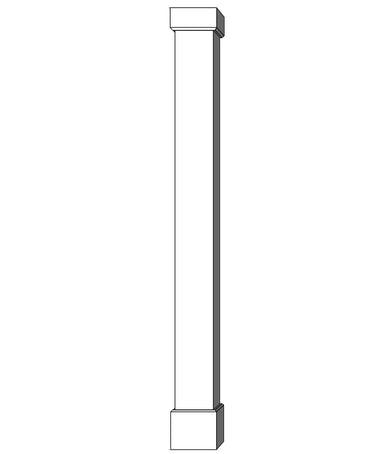

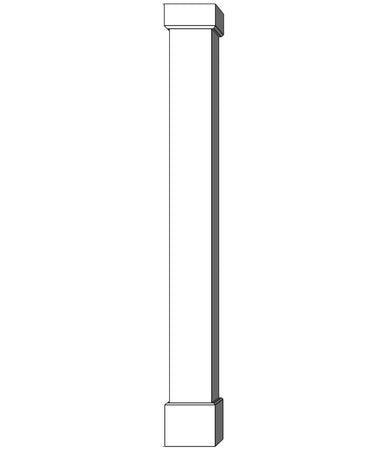

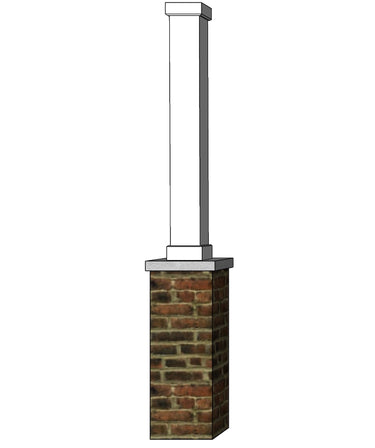

    Box Capital and Base Set, Box Base with Georgian Capital & Neck Trim
  • Height
    4 ft, 6 ft, 8 ft, 9 ft - One Section Shaft, 9 ft - Two Section Shaft, 10 ft, 12 ft
Customer reviews
Average rating:

Score: 5.00 (votes: 3)
Rating of votes (3)
5

3customers
4


0customers
3


0customers
2


0customers
1


0customers

Please sign in to add review
There are no comments yet. Be the first to leave a comment



Non-Tapered PVC Wrap Installation Tips

Download PDF

Tapered PVC Wrap Installation Tips

Download PDF

Craftsman PVC Wrap Installation Tips

Download PDF

Installing PVC Panel Kits

Download PDF

Help on Choosing Wood Columns

Wood Columns Load Bearing Chart

Install Wood Columns

Installing Stain Grade Columns

Assembling Square Paneled Columns

Covering Posts in Basements

Installing Square Post Covers/ Columns

Square Shaft Assembly

Joining Split Wood Columns

Joining Split Fiberglass Columns
Joining a Split Column as a Pilaster

Flutes, Square Wood Columns
Flutes, Round Wood Columns

Installing Exterior Columns
Video    PDF

Glossary of Terms


COLUMN FREQUENTLY ASKED QUESTIONS

Are you the manufacturer?
Elite Trimworks does produce most of our interior columns and most exterior columns.  We specialize in manufacturing PVC Columns.

Are your columns load bearing?
Yes, all of our round wood and Fiber Cast columns are load bearing. Refer to website for the load bearing capability of the desired column.

If my wood columns are split, what type of adhesive do I need to reassemble them?
To reassemble a split column, a high quality wood glue adhesive should be used. This product can be found at any hardware or construction-supply provider.

How do I secure a split column to a wooden or metal post?
Depending on your application, there are several ways to hold a column in place when used for decoration purposes only. One of the most common ways to hold a column in place is to use standard "L" brackets on the bottom and top of the column's shaft. The Tuscan Base and Capital hide this method of installation. If being assembled around a wooden post, a common way to secure the column is by using wood shims. The shims should fit snugly between the column shaft and the post for proper stability. Be sure to visit our website for further column installation instructions.

Can I trim my columns to a lower height?
Yes. If it is a non-tapered column, 1/3 of the shaft height can be trimmed without affecting the fit of the base and capital. Trimming must take place from the bottom of the shaft only!

How are the columns shipped?
Columns measuring up to 8 feet are shipped using UPS. Any column longer than 8 feet must be shipped using a common carrier (Tractor Trailer) and different shipping rates apply.

What happens if my columns arrive damaged?
Depending on shipping method, different rules apply. For instance we do not allow UPS shipments to be refused. For transport shipments, it needs to be indicated on the Bill of Lading (BOL) and we need to be contacted right away. For complete details please see our Terms & Conditions

Is Elite Trimworks competitive with their pricing?
You bet ya! Our 20,000 square foot warehouse allows us to buy in volumes. Half of the columns we sell are made in-house and we pass on the savings to you. We are confident that our prices are some of the best out there. Give us a call and find out for your self.

 Can I install the columns myself or will I need a contractor?
Columns less than 9 feet are easy to manage for proper installation if you are handy with basic tools required. Our website has downloadable instructions for installation. Columns over 9 feet high are best managed with the assistance of an experienced contractor.

Can columns go around poles and beams?
Any column is capable of being split in order to accommodate your design. The rules are as follows: Round Beams take overall diameter; Square Beams, take diagonal measurement from top to determine width. Refer to our specs for inside clearance of the shaft to determine proper size column needed.

Do capital and base add any height to the column?
When you order a round wood column the capital and base are factored into the overall finished height of the column. When ordering the Fiber Cast columns, the capital and base are pieces that fit around the column (see image below) and so they do not play a part in adding height to the finished column.

Are the capitals load bearing?
Decorative capitals are strictly for decorative purposes and are not load bearing. The wood or MDF capitals that come standard with the wooden columns are load bearing.

Are your exterior columns insect and decay resistant?
All our exterior columns are engineered and tested to warrant against damage caused by exterior elements.

How are the columns approved for load?
All of our columns come with full strength and material testing provided from our local material testing facility and engineer, see individual products for exact load bearing data.

How wide should the column shaft be?
The width of columns are calculated in terms of a ratio between the base diameter of the shaft and the height. If you where looking for architecturally accuracy, a Tuscan or Doric column should be seven diameters high, an Ionic column, eight diameters high and a Corinthian column nine diameters high. For more on the “Orders of Architecture” go to www.en.wikipedia.org/wiki/Classical_order#Tuscan_order

 How should I paint my interior columns?
Bulls Eye 1-2-3®i (see site for complete details) a whole house, universal interior/exterior, water-base stain-killing primer-sealer. Excellent adhesion to glossy surfaces, including tile and enamelled trim. Low odour and easy-to-apply with great flow and levelling. Breathable, flexible acrylic formula resists blistering and peeling. This primer generally dries and is ready to expect paint within the hour.

Why should I discuss my project with you?
Speaking with us will ensure that you are getting the correct column for the job, our years of experience may prevent you from making costly errors.
